Case Study: Choosing a Corrosion Test Chamber for Automotive Components

Key Takeaways

• A corrosion test chamber that only runs continuous salt fog measures resistance to salt fog. It does not measure how a part survives the wet, dry and humid cycling that vehicles actually experience on the road.
• Moving from static salt spray to cyclic corrosion testing gave a global automotive parts supplier a 40 per cent reduction in product validation time.
• Q-Fog chambers come in three configurations. SSP adds Prohesion cycling to salt spray, CCT adds a 95 to 100 per cent humidity function, and CRH adds controlled relative humidity for automotive cycles such as SAE J2334.
• Cyclic results correlated far more closely with field performance, which let the engineering team change coatings before production tooling was committed.

Choosing the right corrosion test chamber decides whether your durability data means anything once the part leaves the laboratory. A global automotive parts supplier, specialising in brake components and chassis hardware, learned this the hard way.

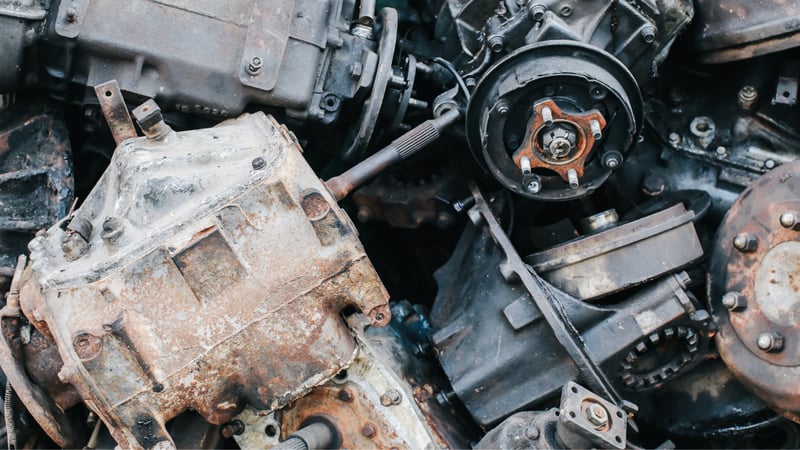

Its components face road salt, spray, humidity swings and temperature cycling every day of their service life, and long term durability is a safety requirement as much as a commercial one. The company's existing corrosion resistance test programme was passing parts that later corroded in the field.

The challenge: salt spray results that did not match the road

The company's testing relied on a traditional salt fog chamber running continuous exposure to a saline mist. That approach is standardised, repeatable and well understood. It is also, on its own, a poor predictor of automotive service life.

A continuous ASTM B117 salt spray test holds specimens in a constant warm, wet, saline environment. Nothing on a vehicle experiences that. Real components get wet, then dry. They get hit with de-icing salt, then washed.

They sit in a humid coastal car park overnight and bake in a car park at 40 degrees the next afternoon. It is the transition between wet and dry that drives most of the electrochemical damage, because the salt concentrates as the surface dries and the corrosion cell becomes far more aggressive.

Because the existing corrosion testing methods never produced that transition, the data did not correlate with actual performance in service. Coatings that survived hundreds of hours of continuous salt fog were failing on vehicles in a fraction of the equivalent time, and coatings that looked marginal in the chamber were sometimes performing well. The ranking was wrong, which is the worst possible outcome from a comparative test.

Three further problems compounded it:

• Validation timelines were long, which pushed out product development and delayed market entry.
• Warranty exposure was unpredictable, because failures were being found by customers rather than by the laboratory.
• Compliance obligations were widening. The company had to demonstrate results against ASTM B117, ISO 9227 and automotive cyclic standards, and a single continuous salt spray chamber could not cover that range.

The solution: a cyclic corrosion test chamber

The company installed a Q-Fog SSP/CCT corrosion testing chamber in its quality assurance and research facilities. The decisive capability was programmable cycling. Rather than a single fixed condition, the chamber steps through salt fog, dry-off, humidity and dwell stages in whatever sequence the test method calls for, and repeats that sequence for the duration of the test.

That single change reframed what the chamber was measuring. A continuous salt spray chamber answers the question how long does this coating resist salt fog. A cyclic corrosion chamber answers the far more useful question how does this coating degrade under the pattern of exposure it will actually see.

Building test protocols around real service conditions

Engineers wrote custom protocols for the three environments their parts had to survive. A coastal profile combined salt fog with long humid dwell stages to reproduce marine air and overnight condensation. A winter road profile used heavier salt loading with repeated dry-off stages to reproduce de-icing salt followed by road heat and airflow. A tropical profile leaned on extended high humidity with shorter fog stages.

Each protocol was run against the full coating set at once. The 600 litre chamber holds 170 panels at 75 by 150 mm, so an entire coating matrix could be exposed in a single run under identical conditions, which removed run to run variation from the comparison. Using standard test substrates for the control panels made results comparable between the company's own sites and its suppliers.

Automation that freed up laboratory time

The chamber's automated operation removed most of the manual intervention the old programme required. Test sequences were programmed once and ran with minimal supervision, including overnight and across weekends. Because conditions can be changed dynamically inside a single cycle, sequences that previously required a technician to move specimens between two chambers now ran unattended in one. Laboratory staff moved from babysitting a corrosion chamber test to interpreting the results it produced.

Q-Fog corrosion test chamber models compared

A corrosion test machine is only as useful as the cycles it can hold. The Q-Fog cyclic corrosion tester range is built in three configurations, and the difference between them is entirely about humidity control.

Both chamber sizes are available across the range.

Which corrosion testing standards each chamber covers

Standards coverage is the single most common reason a corrosion test chamber purchase gets specified incorrectly. The table below sets out what each configuration can run.

One point worth flagging. SAE J2334 specifies a dry stage at 60 degrees C and 50 per cent RH, and a humid stage at 50 degrees C and 100 per cent RH. Holding a defined mid-range RH value requires the air preconditioner fitted to the Q-Fog CRH corrosion chamber, so a J2334 programme should be specified on a CRH rather than an SSP or CCT. It is also worth noting that J2334 allows salt to be applied by spray, fog or immersion, and the immersion option is normally performed manually rather than by the chamber.

If your programme is built around CASS, the collection and mass loss requirements of ASTM B117 and ISO 9227 are the detail that trips most laboratories up, and we have written separately on whether a Q-Fog can meet CASS requirements concurrently.

Results and impact

The move to cyclic corrosion testing produced four measurable outcomes.

• Validation time fell by 40 per cent: Because the accelerated corrosion test now correlated with field behaviour, engineers could make approval decisions from a single well designed cycle instead of running long continuous exposures and then waiting on field data to confirm them.
• Coating development improved: Ranking coatings correctly for the first time exposed which formulations genuinely resisted the wet to dry transition. That fed directly into more durable corrosion resistant coatings and better component specification.
• Compliance broadened: The company could demonstrate results against ASTM, ISO and SAE requirements from one installation, which strengthened its position in export markets.
• Failures moved upstream: Early stage corrosion detection found weaknesses before large scale production, which prevented costly product failures and reduced warranty claims. A coating change made at prototype stage costs a fraction of the same change made after tooling.

The pattern is not unique to automotive. A construction and transportation equipment manufacturer working in coastal and offshore markets reached similar conclusions in our industrial equipment corrosion case study, after parts that passed traditional salt spray kept failing in service.

Where sunlight is also part of the exposure, corrosion alone will understate the damage. Coatings degrade under UV before they fail electrochemically, so many specifications now pair the two. ASTM D5894 combines corrosion and weathering by alternating a Q-Fog cycle with a QUV cycle, and we have covered the practicalities of running weathering and corrosion exposure together in more detail.

Specifying a corrosion test chamber for your own programme

The lesson from this project is not that salt spray is useless. Continuous salt spray remains a valid quality control check and it is still what many specifications call for. The lesson is that a salt spray chamber answers a narrow question, and if you are trying to predict service life, you need corrosion testing equipment that can reproduce the cycle.

Three questions settle most specifications. Which standards are contractually required, now and in the next few years. Whether any of them specify a controlled relative humidity value, because that decides SSP or CCT versus CRH. And how many specimens need to be exposed under identical conditions in one run, which decides 600 or 1100 litres.

Thermoline is the exclusive Australian and New Zealand distributor for Q-Lab, and has been designing and supporting laboratory environmental equipment from Wetherill Park in Western Sydney since 1970. That means local commissioning, local service and local parts, not a support ticket in another time zone.

If you are not ready to bring a chamber in house, Q-Lab contract testing services will run the exposure for you under ISO 17025 accreditation, which is a sensible way to prove the cycle before you commit to capital equipment.

To work out which configuration suits your standards and throughput, browse the corrosion testing chambers range or contact the Thermoline team and we will help you specify it properly the first time.

Corrosion Test Chambers FAQs

What utilities does a corrosion test chamber need on site?

A Q-Fog needs deionised water at better than 200 kilohm centimetres, below 5 microsiemens per centimetre and under 2.5 parts per million total dissolved solids, supplied at 0.2 to 3.8 bar. Consumption peaks at about 2 litres per hour. It also needs compressed air at 1.7 litres per second between 3 and 10 bar, and a single phase supply at 208 or 230 volts drawing 14 to 20 amps depending on model and voltage. Confirm the water treatment capacity before installation, because tap water will contaminate the fog chemistry and invalidate results.

How many test panels fit inside a corrosion test chamber?

A 600 litre Q-Fog holds 170 panels at 75 by 150 mm across 10 racks, or 120 panels at 100 by 300 mm across 8 racks. The 1100 litre model holds 252 and 190 respectively. Maximum distributed specimen load is 544 kilograms in either size. For irregular components rather than flat panels, capacity depends on geometry and on maintaining clear fog circulation around every specimen.

Can corrosion test chamber hours be converted into years of service life?

No, and any supplier offering a fixed conversion factor should be treated with caution. Accelerated corrosion testing produces comparative data, not absolute lifetimes. A well chosen cycle will rank materials in the same order as field exposure, which is what lets you make a confident coating decision, but the ratio between chamber hours and service years varies with alloy, coating system, geometry and the real environment. Correlate your own cycle against your own field returns and use that relationship internally.

Can one chamber run both continuous salt spray and cyclic corrosion tests?

Every Q-Fog configuration runs continuous ASTM B117 salt spray as well as cyclic programmes, so a single installation covers legacy quality control specifications and modern cyclic methods. This matters commercially, because laboratories often assume they need to keep an old salt fog chamber running alongside a new cyclic one and budget for floor space they do not need.

Is the Q-Fog manufactured in Australia?

Q-Fog chambers are manufactured by Q-Lab, and Thermoline is the exclusive distributor for Australia and New Zealand. Thermoline manufactures its own temperature and humidity equipment in Western Sydney and provides local installation, calibration support, spare parts and service for the Q-Lab range, including the QUV accelerated weathering tester and the wider accelerated weathering testers line.
